strontium aluminate based luminous powder
Easy excited, high performance-price radio super long after-glow strontium aluminated based
luminescent pigment
Specifications as following
| Glow color:yellow-green |
Product series |
Specs/code |
Luminance（mcd/m2） |
Afterglow time Min |
Particle size (in um D50) |
Maximum particle diameter | ||
|
1 Min |
10 Min |
60 Min |
Dmax (um)< |
|||||
|
RBG-60DJ101S’ |
RBG-601DJ101S |
4000 |
650 |
65 |
8000 |
75~85 |
120 |
|
|
RBG-602DJ102S |
3300 |
450 |
55 |
6500 |
35~45 |
80 |
||
|
RBG-603DJ103S |
2200 |
310 |
35 |
5000 |
10~20 |
40 |
||
1. The above technical data was obtained through test in accordance with DIN67510 Part I method;
2. The after-glow time refers the time it takes for the luminance to reduce to 0.32mcd/m2 from the time
3. For accurate assessment of the color of luminescence, please refer to samples.

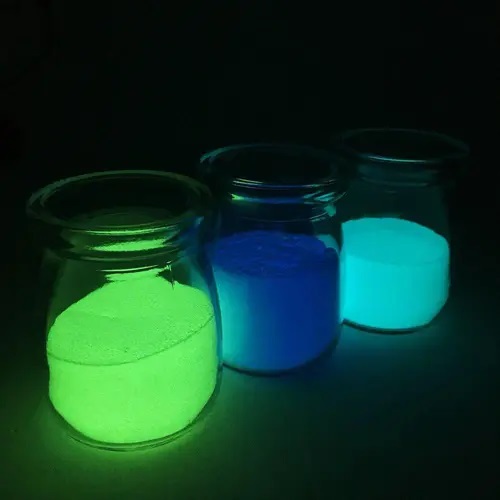

The pigment of the type takes on its natural color in bright places and emits different colors of lights in darkness. It can be used for emergent lighting, indication marks and embellishment.
Chemical form: SrMgAl4O8:Eu2+Dy3+
Characteristics:
1. The photo-luminescent pigment has features of high light and duration.(For example: DIN67510 can glow for 10000 minutes).
2. It can endure light without aging and with chemical stability(it can be used for more than ten years)
3. It is non-toxic and irradiation free; and it is non-inflammable and non-explosive. So it is a new type of luminous material with environmental protection.
4. The photo-luminescent pigment is easy to use and can be used widely.
5. Plenty of glowing color: yellow-green, blue-green, sky-blue, violet, and also pure yellow, red and white etc.
6. Compared with traditional photo-luminescent pigment, by using the chart(table), we can see that the luminosity of our company's photo-luminescent pigment made from rare earth is much greater than sulfide luminescent powder.
